L 810 Light: The Essential Low-Intensity Beacon for Airspace Obstruction Safety

In the global aviation safety framework, lighting systems serve as silent yet powerful protectors. Among the most common and widely deployed components is the L 810 light, a low-intensity, steady-burning red beacon that marks obstructions in low-altitude airspace. Simple in appearance but critical in function, the L 810 light ensures that aircraft can detect and avoid hazards, especially during night operations or reduced visibility conditions. From communication towers to wind turbines, this lighting solution plays a foundational role in obstruction marking compliance and flight safety.

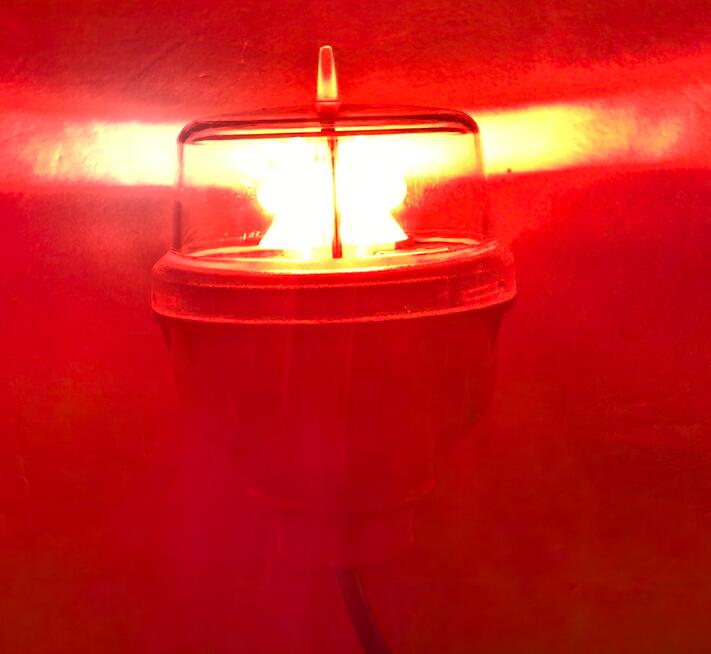

What Is an L 810 Light?

The L 810 light is a low-intensity obstruction light defined by standards from the Federal Aviation Administration (FAA). Specifically, it is a red, steady-burning light intended for marking obstacles up to 150 feet (approximately 45 meters) above ground level. These lights are most often used at night and are mounted on structures that intrude into navigable airspace but are not tall enough to require medium or high-intensity lighting.



The FAA, ICAO (International Civil Aviation Organization), and other aviation authorities globally recognize the L 810 classification as the baseline requirement for visual marking of smaller structures that pose potential risks to low-flying aircraft.



Applications of L 810 Light

The versatility of the L 810 light makes it suitable for a wide range of installations:



Telecommunication towers



Wind energy turbines

l 810 light



Rooftop antennas and masts



Industrial chimneys



Water towers and silos



Utility poles and transmission lines



Helipads and hospital rooftops



These structures, particularly when located near airports or in rural areas with helicopter activity, are required to be visible to aircraft at night, making the L 810 light a regulatory necessity.



Technical Characteristics

The L 810 light must conform to strict performance and design parameters. Key features include:



Light Color: Aviation red



Operation Mode: Steady-burning (non-flashing)



Intensity: Nominal candela output of approximately 32.5 candela minimum



Beam Coverage: Full 360-degree horizontal coverage, with at least 10 degrees vertical beam spread



Power Supply: AC or DC operation, often ranging from 12V to 277V depending on installation



Ingress Protection: Typically IP65 or higher for outdoor durability



Temperature Range: Operational in extreme temperatures, usually from -40°C to +55°C



Modern versions use LED technology instead of traditional incandescent bulbs, improving performance while minimizing energy use and maintenance requirements.



LED vs. Incandescent L 810 Light

Historically, L 810 lights used incandescent lamps with short lifespans and high power consumption. However, advances in LED lighting have significantly transformed the standard. Today’s LED-based L 810 lights offer:



Extended service life (often over 50,000 hours)



Low power draw



Instant startup with no warm-up time



Resistance to shock and vibration



Consistent light output over time



This shift to LED has also improved environmental sustainability and operational efficiency, making LED the default choice for new construction and retrofit projects alike.



Installation and Mounting Configurations

Installation of the L 810 light varies based on the structure’s height, shape, and location:



Single Light Installation: For poles and structures with a single obstruction point



Dual Light Configuration: Two lights mounted opposite each other to ensure omnidirectional visibility



Multiple Level Lighting: For wider structures or rooftops where multiple points must be marked



Combined Lighting: In some installations, L 810 lights are used in conjunction with medium-intensity flashing lights for layered safety



The mounting hardware is typically made from corrosion-resistant metals and engineered to withstand wind, snow, and ultraviolet exposure.



Compliance and Regulatory Considerations

The L 810 light is a regulatory requirement in many regions and must be installed according to guidelines from aviation authorities such as:



FAA AC 150/5345-43 (U.S. obstruction lighting standard)



FAA AC 70/7460-1 (specifies when and where lighting is required)



ICAO Annex 14 Volume I (international guidelines for obstruction marking)



EASA CS-ADR-DSN (European aviation standards)



In the United States, structures over 200 feet AGL or those near airports typically require lighting, though shorter structures may also be marked if deemed necessary during an obstruction evaluation.



Maintenance Requirements

While the L 810 light is designed for durability, routine maintenance is necessary to ensure continuous operation:



Visual inspections to verify steady illumination



Lens cleaning to remove dirt, snow, or debris



Photocell function testing for dusk-to-dawn operation



Check for corrosion on mounting brackets and enclosures



Power system checks to detect voltage irregularities or circuit damage



LED-based systems require far less frequent servicing compared to older lamp types, contributing to lower long-term operational costs.



Advantages of the L 810 Light

Why is the L 810 light still so widely used despite being a low-intensity solution? The reasons are clear:



Cost-effective: Ideal for low-risk structures where high-intensity lighting is unnecessary



Energy efficient: Especially in LED configurations



Compliant: Meets all major aviation safety guidelines



Low-impact: Red light reduces glare and is less disruptive to communities and wildlife



Reliable: Proven technology with minimal failure rates when maintained properly



These benefits make it a go-to solution for marking obstructions efficiently without over-lighting or escalating complexity.



Environmental and Community Impact

The L 810 light has a minimal impact on surrounding environments. Its steady-burning red output is:



Less likely to contribute to light pollution



Preferred near residential areas for reduced visual intrusion



Better for wildlife, particularly migratory birds and nocturnal species, compared to flashing white lights



Some systems also offer shielded optics or directional lighting to further minimize spill light while maintaining compliance.



Future Outlook for L 810 Lighting

As aviation and airspace use continue to evolve, the L 810 light is also adapting:



Solar-powered L 810 lights are emerging for remote, off-grid locations



Smart systems with real-time fault detection and remote monitoring are becoming more common



Integration with radar-based activation for dynamic lighting, reducing energy use and light pollution



UAS (drone) airspace integration could redefine lighting requirements for lower altitudes, potentially increasing demand for L 810-class lights



These innovations aim to maintain high safety standards while improving operational flexibility and sustainability.



Though modest in intensity and simple in design, the L 810 light remains a cornerstone of airspace obstruction safety. Its presence on thousands of towers, turbines, and rooftops around the world ensures that low-altitude flight paths remain safe and navigable.



As lighting technologies continue to improve, the L 810 light is evolving to meet modern demands—more efficient, more intelligent, and more adaptable than ever. For facility managers, aviation planners, and safety engineers, this humble beacon continues to deliver exactly what is needed: reliable, compliant, low-impact visibility that keeps aircraft and airspace secure.
