Detailed introduction
Low intensity obstacle lights are a type of lighting system used to mark low-level structures or obstacles that may pose a hazard to aircraft navigation. These lights are typically characterized by their steady-burning red or white lights, and they are designed to provide a clear visual indication of the presence of obstacles, especially during low light conditions.
The purpose of low intensity obstacle light is to enhance aviation safety by making these structures more visible to pilots. These lights are typically used to mark buildings, cranes, wind turbines, and other structures that are relatively shorter in height. By ensuring visibility, these lights help pilots identify and avoid obstacles during takeoff, landing, and low-level flights.
Low intensity obstacle lights are designed to be durable and weather-resistant, as they need to withstand various environmental conditions. They are often compliant with international aviation regulations, such as those set by the International Civil Aviation Organization (ICAO). Regular maintenance and inspections are important to ensure the lights are working properly and remain visible.
These lights are typically energy-efficient and long-lasting, utilizing LED technology to provide bright illumination while consuming minimal power. This not only reduces operational costs but also aligns with sustainability goals.
In conclusion, low intensity obstacle lights are an essential component of aviation safety systems. By marking low-level structures and providing a clear visual reference for pilots, these lights help prevent potential accidents and ensure safe aircraft navigation.
Overview:

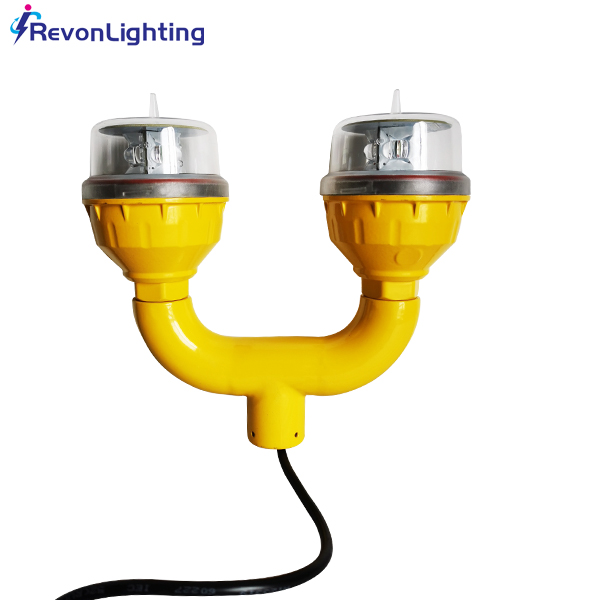

Double Obstruction Light L 810 Light AO-LI-D1, it has different colors and different light characteristics, such as Fixed light, flashing light. This dual low intenity lights is main-standby mode design. when one light not work, the other will start to work automatically. According to ICAO regulations, this low intensity obstruction light is designed for marking top of obstacle which height is not more than 45m. and this l810 red obstruction light needs to keep working in night time. We adopt high intensity CREE LEDs as light source, stable quality and long life time.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-810.
Features:
1. Adopt super bright CREE brand LED, high intensity with a lower energy consumption.
2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).
3. Unique design and UV protected polycarbonate for the obstruction light protect cover.
4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.
5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time
6. No screw fix type - just twist, the cover will be fixed tightly.
7. Built-in photocell for daytime and night operation.
8. Surge and lightning protection.
9. 3/4 inch Pipe thread installation.
Specification:
|
Product Name |
Double obstruction light low intensity obstacle light AO-LI-D1 |
|
Mode NO.: |
AO-LI-D1 |
|
Color: |
Red/yellow/blue/white etc |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
>32.5cd |
|
Horizontal Output(degrees): |
360 degree |
|
Vertical Divergence(degrees): |
>10 degree |
|
Flashing Characteristics:
|
Fixed light/20/30/60fpm adjustable
|
|
Operation Mode: |
Main and standby mode, Night working, daytime off |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption<6W |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
PC cover, lens and Powder coated die-casting aluminum base. |
|
Weight(kg): |
1.5kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. infra-Red (IR) light for NVG 2. Mounting bracket 3. Other functions etc. |

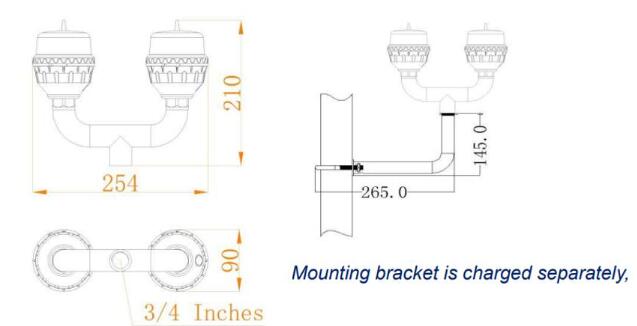

Dimension & Installation:

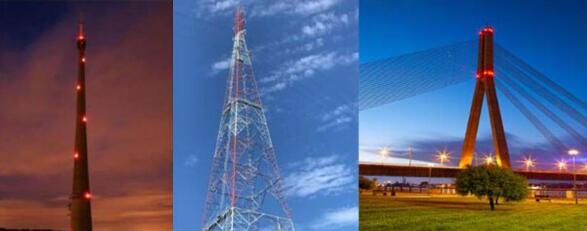

Applications:
Double obstruction light low intensity obstacle light AO-LI-D1 is used for telecommunication Tower, TV/Radio Tower, transmission Tower, high-rise building, industrial Chimney & Cooling Tower, tower Crane, big bridge, wind turbine, airfield & helipad, storage tank & water tower, wind turbine, oil & Gas offshore platform etc when the obstacle height is more than 45m. Our obstruction lights aviation, air craft warning light has a super long time life.
