Detailed introduction
Helicopter pad lights stand as essential elements within aviation infrastructure, intricately designed to optimize safety and guidance during helicopter landings. Positioned atop designated landing pads or helipads, these lights emit a focused, luminous beam, typically in shades of white or yellow, aligning with regional regulations and standards.
Their primary function is to delineate the landing zone, providing clear visual cues to pilots for precise alignment and touchdown, crucial during both day and night operations. By illuminating the landing area with high-intensity light, helicopter pad lights enhance safety and accuracy, ensuring smooth and secure landings even in challenging environmental conditions.
In addition to their operational significance, the installation and maintenance of helicopter pad lights adhere strictly to regulatory guidelines, ensuring optimal functionality and reliability. This commitment underscores their pivotal role in safeguarding helicopter operations at heliport facilities worldwide.
In summary, helicopter pad lights play a critical role in elevating safety standards within aviation. Their provision of precise guidance and visibility empowers pilots to execute landings with confidence, contributing to the overall integrity and efficiency of helicopter operations. As aviation continues to evolve, the importance of these lights in fostering safe and secure landings remains unwavering.
Overview:

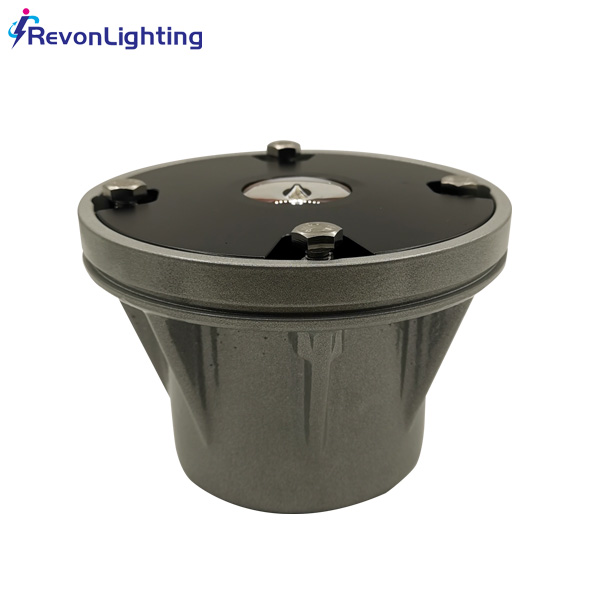

Helicopter pad lights TLOF FATO helipad light AO-HP-IL1 is one kind of inset heliport lighting products, it has many kinds of applications, such as helideck perimeter light, Heliport TLOF, FATO Light etc. It could be used as aiming point light, perimeter light of FATO(Final approach and take-off areas), TLOF (Touchdown and lift-off areas), taxiway light, runway light, flight path Lighting, etc. The emitting color can be yellow, green, white. This inset helipad light can bear the striking from aircraft or maintenance vehicles.
Compliance:
1. ICAO Annex 14 Volume II Heliports 5.3.
2. FAA AC 150/5390-2B Heliport Design Guide
Features:
1. Adopt super bright CREE brand LED, high intensity with a lower energy consumption.
2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).
3. Pressure resistance lens allowed the vehicles go through on light..
4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.
5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time
6. Die-casting aluminum covered by hard anodizing layer have good corrosion protection and load bearing.
7. IP68 waterproof ensure light work fine underground.
Specification:
Product Name |
Helicopter pad lights TLOF FATO helipad light |
Mode NO.: |
AO-HP-IL1 |
Color: |
Green/yellow/white etc |
Light source:
|
CREE LED |
Light Intensity(cd): |
>100cd |
Horizontal Output(degrees): |
360 degree |
Installation type: |
Concealed installation (inset) |
Flashing Characteristics:
|
Fixed light steady burning
|
Operation Mode: |
24 hours after power on |
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
Power Consumption(W): |
Average Power consumption 7W |
Circuit Protection: |
Integrated |
Helipad Light Material: |
lens and Powder coated die-casting aluminum base. |
Weight(kg): |
4.5kg |
IP Grade: |
IP68 |
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
Optional functions(Separate charges): |
1. VHF pilot to ground remote control 2. Infra-Red (IR) light for NVG 3. Mounting bracket |

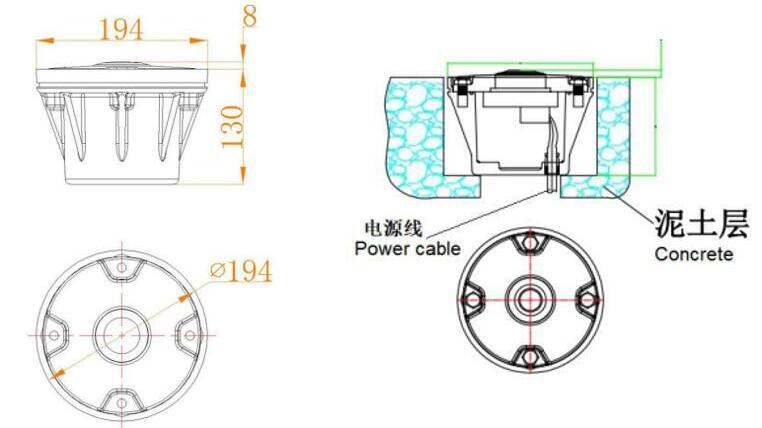

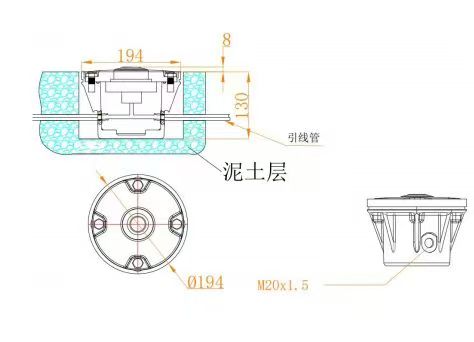

Dimension & Installation:

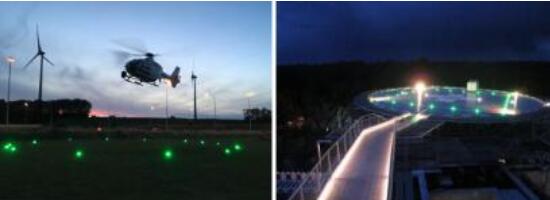

Applications:
Helicopter pad lights TLOF FATO helipad light has many applications for heliport lighting, sucha as Helipad FATO light, heliport TLOF areas Heliport FATO areas, Helipad Runway, Helipad taxiway, Aiming point light, helideck perimeter light etc.
