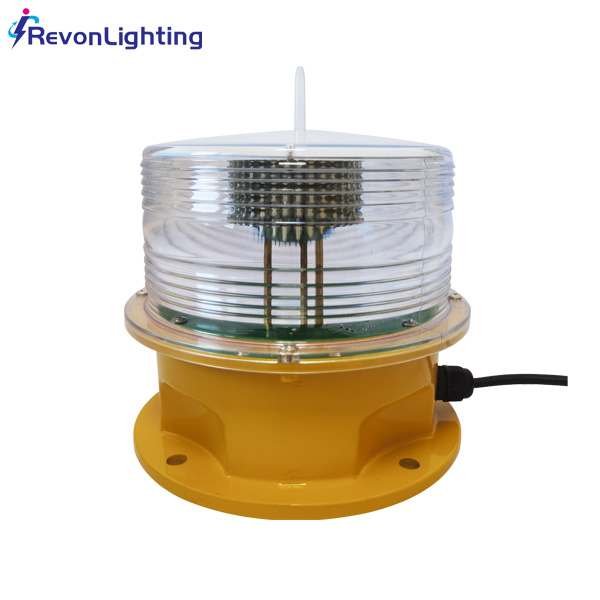

Heliport beacon light for helipad lighting AO-HP-B1

The Heliport Beacon Light serves as a fundamental component in aviation, specifically designed to enhance visibility and safety for helicopters navigating towards heliports. Positioned atop structures or masts at heliport facilities, these heliport beacon lights emit a powerful, rotating beam of light, typically in shades of white, green, or yellow, depending on regional regulations and standards.

This heliport beacon light acts as a prominent visual indicator, aiding helicopter pilots in locating heliports and determining wind direction and speed during approach and departure phases. Additionally, the distinctive flashing pattern of the beacon light ensures its visibility over long distances, even in adverse weather conditions or low visibility scenarios. The Heliport Beacon Light plays a crucial role in facilitating safe and efficient helicopter operations by providing clear visual cues to pilots and enhancing situational awareness. Its installation and maintenance adhere to strict regulatory guidelines to ensure optimal functionality, making it an indispensable feature of heliport infrastructure worldwide.

In conclusion, the Heliport Beacon Light significantly contributes to the safety and effectiveness of helicopter landings and take-offs by offering prominent visual guidance to pilots in various operational conditions.

operations.

     Overview:

AO-HP-B1 heliport beacon light is necessary visual guidance and identification of the heliport. The heliport beacon shall be located on or adjacent to the heliport preferably at an elevated position and so that it does not dazzle a pilot at short range. The helipad beacon flashes white color 4 times in 0.8s and stop for 1.2s, then start new circle for 2s (0.8s+1.2s ).

     Compliance:

1. ICAO Annex 14 Volume II Heliports 5.3.

2. FAA  AC 150/5390-2B Heliport Design Guide

     Features:

1. Adopt super bright brand LED, high intensity with a lower energy consumption.

2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).

3. Clear polycarbonate lens for converging light and also provides corrosion resistance and UV protection...

4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.

5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time

6. UV protection Powder coated bright yellow color base make better visibility.

     Specification:

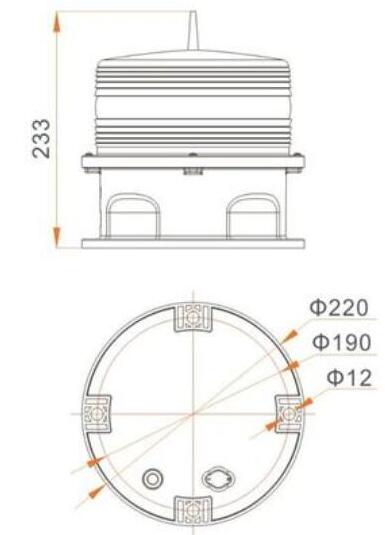

     Dimension & Installation:

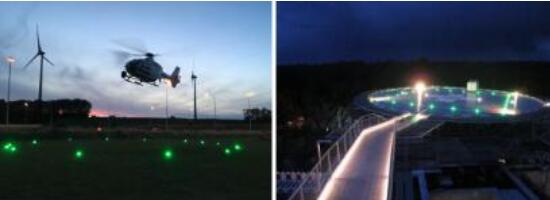

     Applications:

Heliport beacon light for helipad lighting AO-HP-B1 is used for heliport lighting as a visual guidance and identification, it needs to use with other helipad light.
