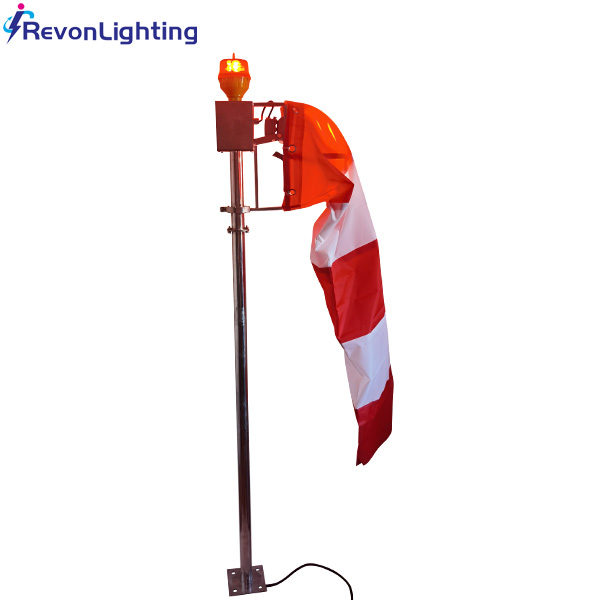

Lighted windsock aviation windsock helipad windsock AO-HP-W1

Detailed introduction

A lighted windsock is a novel and practical device used to indicate wind direction and speed at airports, helipads, and other aviation facilities. It consists of a fabric tube, typically made of durable nylon, with a conical shape and an opening at one end. Inside the windsock, LED lights are embedded to provide illumination, ensuring visibility even during low-light conditions or at night.



The primary purpose of a aviation windsock is to inform pilots and ground personnel about the direction and strength of the wind. It plays a crucial role in aviation safety by assisting pilots in making informed decisions during takeoff, landing, and taxiing. Windsocks are especially vital in areas where other wind direction indicators, such as wind vanes or anemometers, may not be visible or accurate due to obstacles or terrain.



The addition of LED lights to the windsock greatly enhances its visibility and functionality. The lights are strategically placed inside the windsock to illuminate it uniformly, making it easily discernible from a distance. This ensures that pilots and ground personnel can quickly and accurately determine wind conditions, even in dark or adverse weather conditions.



Lighted windsocks offer several advantages over traditional, non-illuminated windsocks. The LED lights provide a continuous, steady source of light, making them more visible than reflective or fluorescent windsocks. They are energy-efficient, consuming minimal power while providing high visibility. Additionally, LED lights have a long lifespan, reducing the need for frequent maintenance or replacement.



helipad windsocks are commonly used at airports, helipads, and other aviation-related locations. They are typically mounted on a pole or mast, positioned at a height that allows for maximum wind exposure. The windsock rotates and aligns itself with the wind direction, providing an accurate indication of the prevailing wind conditions.



In conclusion, lighted windsocks are innovative devices that improve aviation safety by providing clear and visible wind direction information. The integration of LED lights ensures their visibility during low-light conditions, enhancing their effectiveness. With their durability, energy efficiency, and reliability, lighted windsocks are an essential tool for pilots, air traffic controllers, and ground personnel in monitoring wind conditions and ensuring safe operations in the aviation industry.

Lighted Windsock

     Overview:

Lighted windsock aviation windsock helipad windsock AO-HP-W1, it is internally Illuminated, the obstruction light in the top, and led flood light inside the wind cone, and it will rotate together with windsock too. An aerodrome shall be equipped with at least one wind cone as wind direction indicator.



     Compliance:

1. ICAO Annex 14 Volume II Heliports 5.3.

2. FAA  AC 150/5390-2B Heliport Design Guide



     Features:

1. Adopt super bright brand LED, high intensity with a lower energy consumption.

2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).

3. Wind cone heliport pole is made of corrosion resistance and wind resistance stainless steel 304.

4. One obstruction light on top, one flood light inside wind cone for illumination.

5. Rotatable design, the wind cone can rotate with the wind.

6. Pole height is customized(1me, 1.5m, 2.5m, 3m, 4m, 5m...).

7. Windsock color is: orange(Nylon), red/white(PVC).



     Specification:

Product Name

Lighted windsock aviation windsock helipad windsock AO-HP-W1

Mode NO.:

AO-HP-W1

Color:

Obstruction light red color, flood light white color

Light source:

LEDs

Pole height:

1m, 1.5m(standard), 2m, 3m, 4m... etc

Special design:

Internally Illuminated Heliport Wind Cone





Windsock dimension:

Pole height:<4m, Length: 1.2m, big diameter: 300mm, small diameter: 150mm;

Pole height: 4m-6m, Length: 2.4m, big diameter: 600mm, small diameter: 300mm;

Pole height: >6m, Length: 3.6m, big diameter: 900mm, small diameter: 450mm.

Flashing Characteristics:
steady burning, fixed light

Operation Mode:

24 hours after power on

Input:

100-240VAC 50-60Hz, 12-48VDC(Details contact us)

Power Consumption(W):

Average Power consumption <12W

Wind resistance:

80m/s

Wind cone heliport Material:

stainless steel 304 pole, Nylon or PVC wind cone

Windsock color:

Orange, red/white ( other is available)

IP Grade:

IP65

Work environment:

-50℃~+60℃, Humidity 0%-100%



Optional functions(Separate charges):

1. Frangible coupling is optional

2. Solar power system



     Dimension & Installation:

helipad windsock

(Photo above is only for reference, the final is customized for different height)



     Applications:

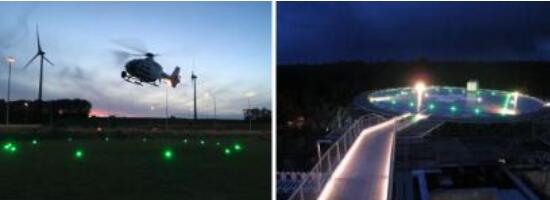

Lighted windsock aviation windsock helipad windsock AO-HP-W1 is used for heliport lighting, this helipad Windsock needs to use with other helipad light.
