Detailed introduction
Solar obstruction lights are specialized lighting devices designed to provide warning signals for tall structures such as towers, cranes, buildings, and wind turbines. These lights are primarily used to improve aviation safety by marking obstacles that could pose a potential hazard to aircraft, especially during low visibility or nighttime conditions.
solar obstacle lights are powered by solar energy, making them a sustainable and cost-effective solution for remote or off-grid locations where access to electricity is limited. They are equipped with high-intensity LED lights that emit a bright and focused beam, ensuring clear visibility for pilots and helping them to navigate safely around the marked structures.
One of the key advantages of solar obstruction lights is their energy efficiency. They utilize solar panels to capture and store energy from the sun during the day, which is then used to power the lights at night. This eliminates the need for traditional power sources and reduces reliance on batteries or generators, resulting in lower operating costs and minimal maintenance requirements.
solar obstacle lights are designed to meet international aviation regulations and standards, ensuring their reliability and effectiveness. They are often equipped with features such as dusk-to-dawn sensors, adjustable brightness settings, and remote monitoring capabilities, allowing for easy operation and maintenance.
Installation of solar obstruction lights is relatively simple and flexible. They can be easily mounted on various structures using brackets or clamps, without the need for extensive wiring or electrical infrastructure. This makes them a practical solution for both permanent installations and temporary setups, such as construction sites or emergency response areas.
In summary, solar obstruction lights play a critical role in improving aviation safety by providing clear warning signals for tall structures. Their use of solar energy, energy efficiency, compliance with regulations, and ease of installation make them a reliable and sustainable choice for marking and warning against obstacles. These lights contribute to creating a safer airspace and reducing the risk of accidents caused by obstruction hazards.
Overview:

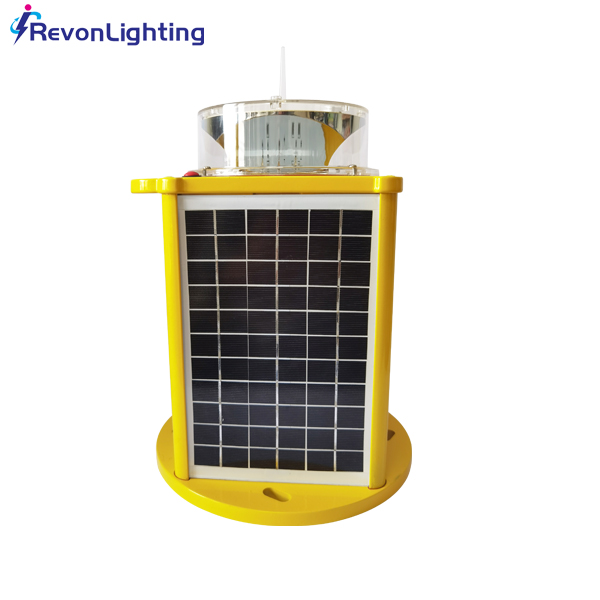

Solar obstruction light solar obstacle light mediumintensity light L 864 AO-SMI-B1, it flash red color night time. According to ICAO, FAA regulations, this solar powered obstruction lights is designed for marking top of obstacle which height is between 45 to 105 meters. and this l864 obstruction light needs to keep flahsing in night time at 20-60fpm. We adopt high intensity CREE LEDs as light source, stable quality and long life time.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-864.
Features:
1. Adopt super bright CREE brand LED, high intensity with a lower energy consumption.
2. Solar powered self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation.
3. Unique design and UV protected polycarbonate for the solar obstruction light protect cover.
4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.
5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time
6. 4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon.
7. Built-in photocell for daytime and night operation.
8. Long life time lithium battery.
9. Kinds of optional functions available, such as GPS synchronous flashing, sequence flashing, alarm relay etc.
Specification:
|
Product Name |
Solar obstruction light solar obstacle light mediumintensity light L 864 |
|
Mode NO.: |
AO-SMI-B1 |
|
Color: |
Red |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
Type B: 2,000cd±25% (Night) |
|
Horizontal Output(degrees): |
360 degree |
|
Vertical Divergence(degrees): |
3-7 degree |
|
Flashing Characteristics:
|
20-60FPM
|
|
Operation Mode: |
Night working, daytime off |
|
Battery: |
12-16AH lithium battery |
|
Solar panel: |
Mono crystalline silicon solar panel |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
PC cover, ABS reflector and Powder coated die-casting aluminum base. |
|
Weight(kg): |
6.2kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. GPS Sync Flashing， 2. infra-Red (IR) light for NVG 3. Mounting bracket 4. Other functions etc. |

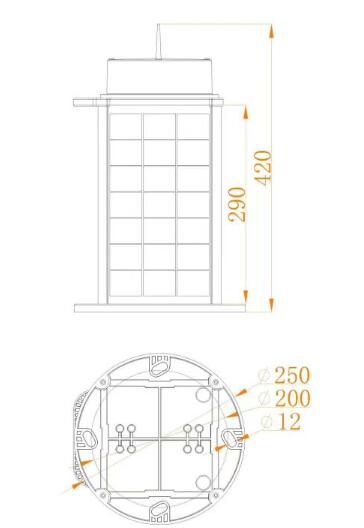

Dimension & Installation:

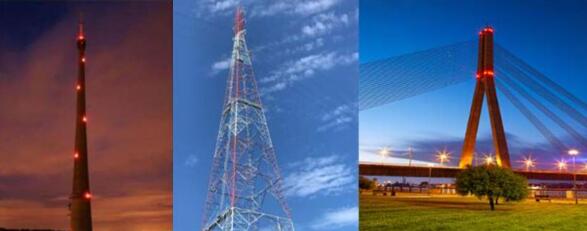

Applications:
Solar obstruction light solar obstacle light mediumintensity light L 864 AO-SMI-B1 is used for telecommunication Tower, TV/Radio Tower, transmission Tower, high-rise building, industrial Chimney & Cooling Tower, tower Crane, big bridge, wind turbine, airfield & helipad, storage tank & water tower, wind turbine, oil & Gas offshore platform etc when the obstacle height is 45-105m, and it needs medium intensity aviation obstruction light in the top, and low intensity obstacle lights installed on the lower place.
