Detailed introduction
The 360-degree high intensity obstruction light and tower aviation light is an advanced safety system designed to mark tall structures and potential hazards for aircraft navigation. This innovative light features a 360-degree visibility, ensuring maximum visibility from all angles.
Compliant with international aviation regulations, such as those set by the International Civil Aviation Organization (ICAO) and the Federal Aviation Administration (FAA), the 360-degree high intensity obstruction light and tower aviation light undergoes rigorous testing to ensure durability and reliability in various environmental conditions. Regular maintenance and inspections are essential to ensure proper functioning, including checking for any damage, verifying alignment and visibility, and promptly replacing any faulty components.
The high intensity LED lights used in this system provide a powerful and concentrated beam of light, enhancing visibility even in adverse weather conditions or low-light environments. The 360-degree coverage ensures that pilots can easily spot and navigate around structures, reducing the risk of accidents caused by obstacles.
One of the key advantages of the 360-degree high intensity obstruction light and tower aviation light is its energy efficiency and long-lasting performance. The LED lights consume less energy compared to traditional lighting technologies, resulting in reduced operational costs. Additionally, they have a longer lifespan, reducing the need for frequent replacements and maintenance.
This comprehensive system can be easily installed on various structures, such as towers, cranes, chimneys, and wind turbines. It is designed to withstand harsh weather conditions and provide reliable performance throughout the year.
In conclusion, the 360-degree high intensity obstruction light and tower aviation light is an essential safety measure for marking tall structures and potential hazards in aviation. With its 360-degree visibility, compliance with regulations, and energy-efficient features, this system ensures the overall safety of air traffic and protects both aircraft and structures.
Overview:

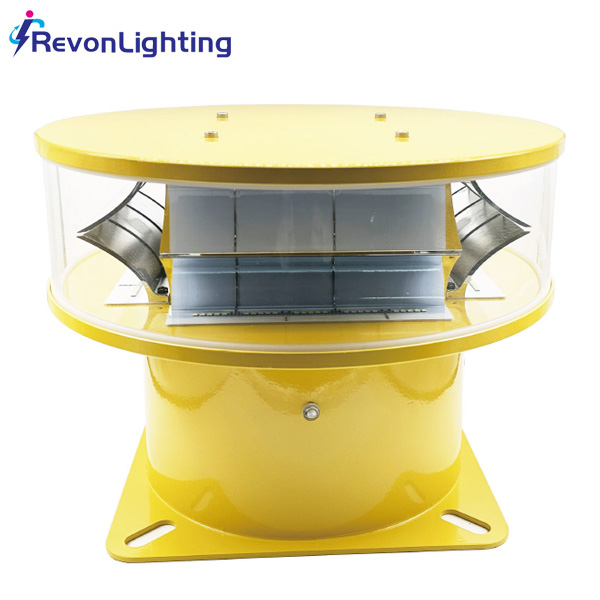

360-degree high intensity obstruction light tower aviation light AO-HI-A2 illuminate white light 24 hours day and time. According to ICAO, FAA regulations, lighting of objects with a height 150 m or more above ground level, and this high intensity obstruction light needs to keep flahsing 24 hours at 40-60fpm. We adopt high intensity CREE LEDs as light source, stable quality and long life time.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-856.
Features:
1. Light source using LED technology, LED PCB two-layer design, better heat dissipation,lower energy consumption, high efficiency.
2. High-precision beam optical reflector, two-layer design, can effectively control the beam within the required range, and greatly reduce power consumption.
3. Unique design and UV protected polycarbonate for the obstruction light protect cover.
4. Aluminum alloy die-cast shell, yellow electrostatic powder coating surface, anti-vibration, corrosion-resistant.
5. Waterproof silicone seal structure.
6. Professional EMC design, anti-electromagnetic interference.
7. Built-in photocell for daytime, twilight and night operation.
8. Surge and lightning protection.
9. Kinds of optional functions available, such as GPS synchronous flashing, sequence flashing, alarm relay etc.
Specification:
|
Product Name |
360-degree high intensity obstruction light tower aviation light AO-HI-A2 |
|
Mode NO.: |
AO-HI-A2 |
|
Color: |
White |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
200,000cd±25%(Daytime), 20,000cd±25%(Twilight) , 2,000cd±25 (Night) |
|
Horizontal Output(degrees): |
360 degree |
|
Vertical Divergence(degrees): |
5 degree |
|
Flashing Characteristics:
|
40-60FPM
|
|
Operation Mode: |
24 hours operation, 3 different modes |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption<80W |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
PC cover, ABS reflector and Powder coated die-casting aluminum base. |
|
Weight(kg): |
15kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. GPS Sync Flashing， 2. infra-Red (IR) light for NVG 3. Mounting bracket 4. Other functions etc. |

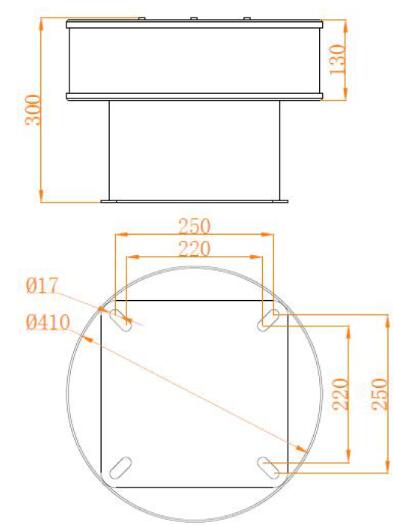

Dimension & Installation:

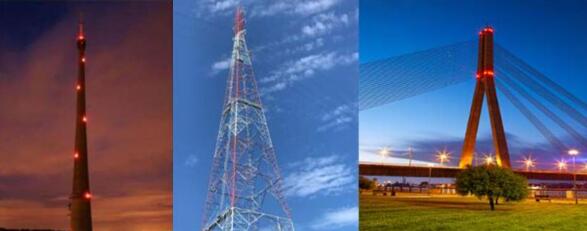

Applications:
360-degree high intensity obstruction light tower aviation light AO-HI-A2 is used for telecommunication Tower, TV/Radio Tower, transmission Tower, high-rise building, industrial Chimney & Cooling Tower, tower Crane, big bridge, wind turbine, airfield & helipad, storage tank & water tower, wind turbine, oil & Gas offshore platform etc when the obstacle height is more than 150m, and it needs work with medium intensity obstruction lights, low intensity obstacle lights installed on the lower place.
