Detailed introduction
Aviation obstruction light high intensity obstruction lights are crucial components of aviation safety systems. These lights are specifically designed to mark tall structures, such as towers, cranes, and chimneys, that could pose potential hazards to aircraft navigation. The high intensity light emits a powerful, concentrated beam of light, ensuring maximum visibility for pilots even in adverse weather conditions or low-light environments. Compliance with international aviation regulations, including those set by the International Civil Aviation Organization (ICAO) and the Federal Aviation Administration (FAA), is a fundamental requirement for high intensity obstruction lights.
These lights undergo rigorous testing to ensure their durability and reliability in various environmental conditions. Regular maintenance and inspections are essential to ensure the proper functioning of the lights, including checking for any damage, verifying alignment and visibility, and promptly replacing any faulty components. The high intensity obstruction lights provide a clear visual cue to pilots to maintain a safe distance and navigate their aircraft accordingly. This significantly enhances aviation safety and helps prevent potential accidents caused by obstacles. The long-lasting performance and energy-efficient features of these lights contribute to reducing operational costs.
Overall, high intensity obstruction lights serve as an essential safety measure for tall structures, ensuring the overall safety of air traffic and protecting both aircraft and structures.
Overview:

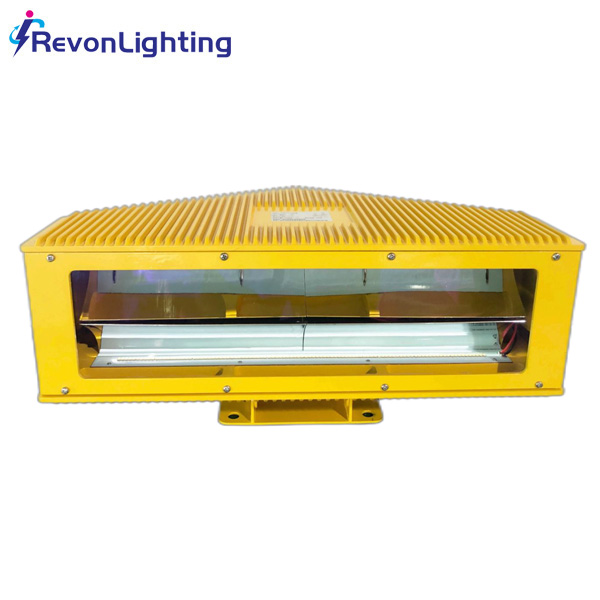

Aviation obstruction light high intensity obstruction light AO-HI-A4 is used to mark buildings that may cause damage to aircraft. This mode high-intensity aviation obstruction lights illuminate white light 24 hours day and time, Combines with advanced LED, optical and system control technology to meet the most demanding applications. Suitable for obstacles with a height of 150 meters. Suitable for high salinity corrosion area.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-856.
Features:
1. Light source using LED technology, LED PCB two-layer design, better heat dissipation,lower energy consumption, high efficiency.
2. High-precision beam optical reflector, two-layer design, can effectively control the beam within the required range, and greatly reduce power consumption.
3. Aluminum alloy die-cast shell, yellow electrostatic powder coating surface, anti-vibration, corrosion-resistant.
4. Waterproof silicone seal structure.
5. Professional EMC design, anti-electromagnetic interference.
6. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).
7. Built-in photocell for daytime, twilight and night operation.
8. Surge and lightning protection.
9. Kinds of optional functions available, such as GPS synchronous flashing, sequence flashing, alarm relay etc.
Specification:
|
Product Name |
Aviation obstruction light high intensity obstruction light 90 degree |
|
Mode NO.: |
AO-HI-A4 |
|
Color: |
White |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
200,000cd±25%(Daytime), 20,000cd±25%(Twilight) , 2,000cd±25 (Night) |
|
Horizontal Output(degrees): |
90 degree |
|
Vertical Divergence(degrees): |
5 degree |
|
Flashing Characteristics:
|
40-60FPM
|
|
Operation Mode: |
24 hours operation, 3 different modes |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption<80W |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
Glass and die-casting aluminum casing. |
|
Weight(kg): |
9kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. GPS Sync Flashing， 2. infra-Red (IR) light for NVG 3. Mounting bracket 4. Other functions etc. |

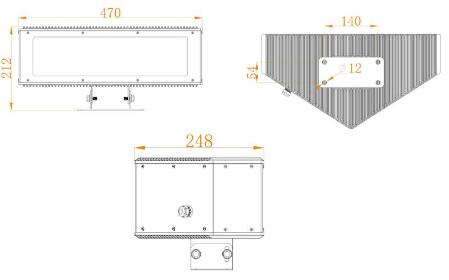

Dimension & Installation:
Applications:

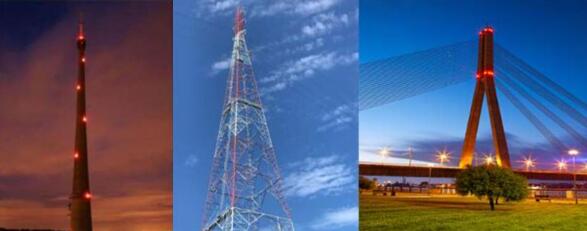

Aviation obstruction light high intensity obstruction light AO-HI-A4 is used for telecommunication Tower, TV/Radio Tower, transmission Tower, high-rise building, industrial Chimney & Cooling Tower, tower Crane, big bridge, wind turbine, airfield & helipad, storage tank & water tower, wind turbine, oil & Gas offshore platform etc when the obstacle height is more than 150m, and it needs work with medium intensity obstruction lights, low intensity obstacle lights installed on the lower place.
