Detailed introduction
Heliport rotating beacons, also known as LED rotary beacons or airfield rotating beacons, are critical visual aids used to mark heliports and airfields for safe aircraft operations. These beacons emit bright, rotating LED light signals that enhance visibility during night or low-visibility conditions, guiding pilots accurately to landing zones. Designed for high energy efficiency and long service life, they withstand harsh weather with durable construction. Widely used in commercial, military, and private aviation, these rotating beacons improve overall airfield safety and navigation.
Overview:

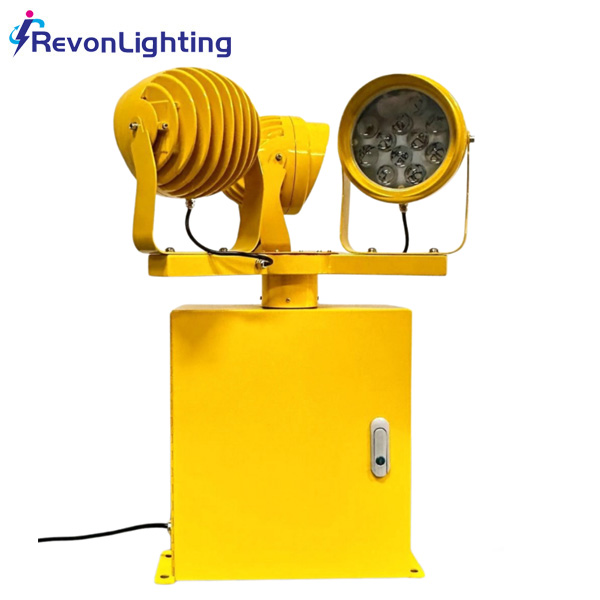

AO-HP-R1 heliport rotating beacons, also known as LED rotary beacons or airfield rotating beacons, are essential lighting devices designed to mark heliports and airfields clearly. These beacons emit bright, rotating LED light signals that provide high visibility during night and low-visibility conditions, helping pilots accurately identify landing areas. Engineered for energy efficiency and durability, they feature weatherproof housings and long-lasting LEDs, ensuring reliable performance in various aviation environments. Widely used in commercial, military, and private settings, these rotating beacons enhance safety and navigation for helicopter and aircraft operations.
Compliance:
1. ICAO Annex 14 Volume I 5.3.3
2. FAA L-801H AC 150/5345-12 ; FAA L-802H AC 150/5345-12;
Features:
1. High-Efficiency LED Technology – Ultra-bright, long-lasting LED modules deliver exceptional visibility while minimizing power consumption.
2. Dual Power Compatibility – Supports both DC (12–48V) and AC (100–265V, 50/60Hz) inputs, enabling versatile installation options.
3. Maintenance-Free Operation – Designed for continuous, reliable performance without the need for regular servicing.
4. Permanent Lubrication System – All moving parts feature lifetime lubrication to ensure smooth and durable operation.
5. Burnout-Protected Motor – Impedance-protected motor design prevents overheating, guaranteeing consistent, long-term performance.
6. Optimized Flash Pattern – Rotates at 12 RPM, producing 36 flashes per minute for clear and unmistakable signaling.
7. Rugged Weatherproof Housing – Constructed from stainless steel with a powder-coated yellow finish for superior corrosion resistance and durability.
8. Precision Optical Design – Focused beam pattern minimizes light pollution while maximizing visibility.
9. Triple-LED Configuration – Incorporates white, aviation green, and yellow LEDs to support diverse application requirements.
Specification:
|
Product Name |
AO-HP-R1 Heliport rotating beacon led rotary beacon airfield rotating beacon led rotating beacon |
|
Mode NO.: |
AO-HP-R1 |
|
Color: |
White, Green and Yellow 3 colors (other colors available) |
|
Light source:
|
LEDs |
|
Light Intensity(cd): |
>25000cd |
|
Operation mode: |
Steady burning |
|
Installation type: |
Surface mounting |
|
Flashing Characteristics:
|
12RPM(Revolutions Per Minute), 36 flashes per minute
|
|
Operation Mode: |
24 hours after power on |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Each LED head <50W，system power>200W |
|
Circuit Protection: |
Integrated |
|
Helipad Light Material: |
lens and Powder coated stainless steel |
|
Weight(kg): |
25kg |
|
IP Grade: |
IP65 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
/ |

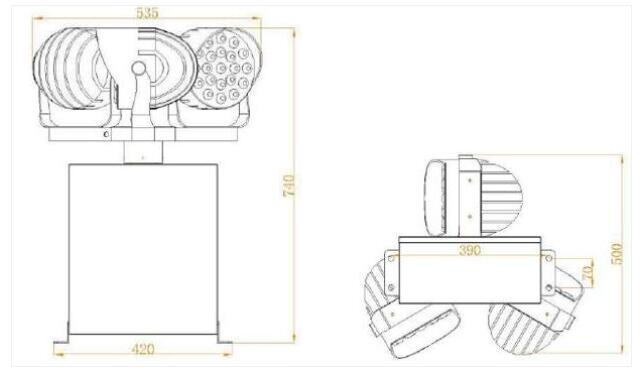

Dimension & Installation:
Applications:
Heliport rotating beacons, including LED rotary and airfield rotating beacons, serve as critical visual aids that mark heliports and airfields for safe aircraft operations. These beacons emit bright, rotating LED light signals, enhancing visibility during nighttime or low-visibility conditions. Designed for energy efficiency, durability, and compliance with aviation standards, they help pilots accurately identify landing zones, ensuring safe approaches and departures in commercial, military, and private aviation environments.
