L 864 Beacon: The Gold Standard in Medium-Intensity Obstruction Lighting
The L 864 beacon represents a critical component in aviation safety systems worldwide. As a medium-intensity white strobe light, it provides essential daytime and twilight visibility for tall structures that could pose hazards to air navigation. This article examines the technical specifications, applications, and evolving technologies surrounding the L 864 beacon, which has become an industry benchmark for reliable obstruction lighting.
Understanding the L 864 Beacon Standard
The L 864 beacon is classified under FAA AC 150/5345-43H specifications as a Type L-864 medium-intensity white obstruction light. Key characteristics include:
Flash rate: 40 flashes per minute (±5%)
Effective intensity: 20,000 candela minimum
Horizontal dispersion: 360° coverage
Vertical dispersion: Minimum 3° above and below horizontal plane
Color temperature: Daylight white (5000-7000K)
Primary Applications
L 864 beacons serve vital roles across multiple industries:
Telecommunications: Tower lighting for cell sites and broadcast antennas

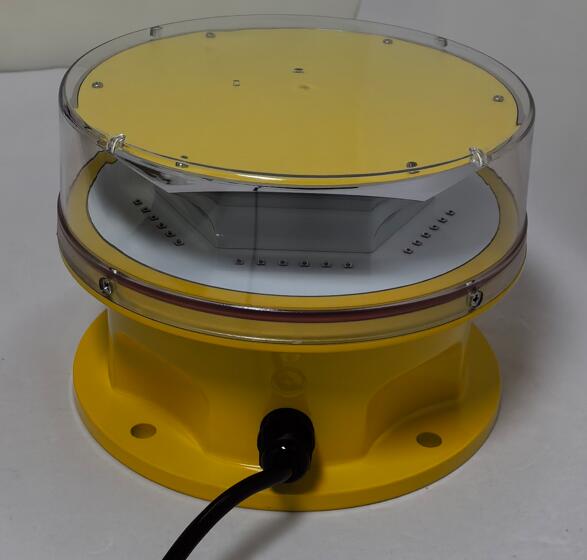

| l 864 beacon |
Wind Energy: Marking wind turbine clusters for aircraft visibility
Urban Infrastructure: Lighting skyscrapers and tall buildings
Transportation: Bridge and crane illumination
Aviation: Lighting non-towered airports and navigation structures
Technical Advancements in L 864 Technology
Modern L 864 beacon systems incorporate significant improvements:
| l 864 beacons |
✔ LED Conversion: Replacing xenon with energy-efficient LED arrays
✔ Smart Monitoring: Remote diagnostics and failure alerts
✔ Adaptive Brightness: Automatic intensity adjustment for visibility conditions
✔ Durability Enhancements: Improved resistance to weather and UV degradation
✔ Power Options: Solar-hybrid configurations for remote installations
Regulatory Compliance Framework
The L 864 beacon must meet stringent international standards:
FAA AC 150/5345-43H: U.S. requirements for obstruction lighting
ICAO Annex 14: International Civil Aviation Organization standards
EN 12430: European aeronautical ground lighting specifications
Transport Canada TP 312: Canadian aviation lighting requirements
Installation Best Practices
Proper L 864 beacon installation requires:
Positioning: Mounting at highest point of structure
Spacing: Multiple units for structures over 500 feet
Alignment: Ensuring unobstructed visibility from all angles
Grounding: Proper electrical safety measures
Testing: Verification of flash characteristics and intensity
Performance Comparison: L 864 vs Other Standards
Feature L 864 Beacon L 810 (Low) L 856 (High)
Intensity 20,000 cd 32 cd 200,000 cd
Day/Night Use Both Night only Primarily day
Flash Rate 40 fpm 20-60 fpm 40 fpm
Power Draw 50-150W 5-20W 300-500W
Typical Range 3-5 miles 1-2 miles 10-15 miles
Maintenance Protocols
To ensure optimal L 864 beacon performance:
Conduct quarterly visual inspections
Clean optical surfaces biannually
Test electrical systems annually
Verify flash synchronization
Monitor for corrosion or physical damage
Maintain replacement parts inventory
Emerging Trends in Obstruction Lighting
The future of L 864 beacon technology includes:
Integrated IoT Connectivity: Real-time performance monitoring
Advanced Materials: Graphene-enhanced components
Predictive Maintenance: AI-driven failure prediction
Energy Harvesting: Supplemental wind or vibration power
Space-Saving Designs: Low-profile configurations
Global Market Adoption
The L 864 beacon maintains strong worldwide presence:
North America: 78% market penetration for medium-intensity needs
Europe: 65% adoption with growing LED conversions
Asia-Pacific: Rapid infrastructure growth driving demand
Middle East: Harsh environment-resistant models preferred
The L 864 beacon continues to serve as the backbone of medium-intensity obstruction lighting systems globally. Its balanced combination of visibility range, energy efficiency, and reliability makes it indispensable for aviation safety. As technology progresses, we can expect L 864 beacon systems to incorporate smarter features while maintaining their fundamental safety purpose.
For structure owners and aviation authorities, proper specification, installation, and maintenance of L 864 beacon systems remains a critical responsibility in our increasingly crowded airspace. The ongoing evolution of these lighting solutions promises to enhance both safety and sustainability in the years ahead.
